Deliver high-assurance cryptographic key services with a dedicated PCIe HSM designed for crypto-agility, native hardware-accelerated post-quantum algorithm support, and long-term cryptographic resilience.

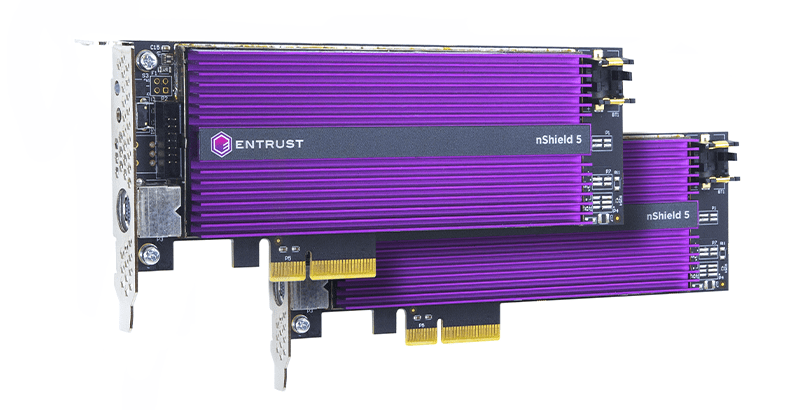

nShield 5s HSMs are PCIe cards that perform encryption, digital signing, and key generation for an extensive range of commercial and custom-built applications, including certificate authorities, code signing, and more. With their comprehensive capabilities and quantum crypto-agility, they are 100% compatible with existing nShield HSM deployments and APIs, and they are highly secure, with FIPS 140-3 Level 3 certification*.
The nShield 5s HSM series includes the new high-performance nShield 5s High, which offers superior asymmetric and symmetric performance and best-in-class elliptic curve cryptography (ECC) transaction rates.
Our Security World architecture integrates nShield HSMs into a unified ecosystem, delivering scalability, load balancing, and more.
Prepare for quantum-era threats with native firmware support for hardware-accelerated, NIST-standardized post-quantum algorithms.
Execute code within nShield boundaries, protecting your applications and the data they process.
Full specifications for nShield 5s
| Specification | Details |
|---|---|
| Safety and Environmental Standards Compliance | UL, CE, FCC, Canada ICES, KC, VCCI, RCM, UKCA RoHS, WEEE, REACH |
| Security Compliance |
|
| Supported APIs | PKCS#11, OpenSSL |
| Supported Cryptographic Algorithms |
|
| Ed25519ph) |
|
| PKCS#11 and nCore APIs | TUAK & MILENAGE algorithm support for mutual authentication and key generation (3GPP), Supported Platforms |
| Specifications | nShield 5s HSM: 1,702,841 hours, nShield 5s modelsBaseMidHighML-DSA signing performance (tps) for NIST standardized PQC schemesML-DSA443407902,780ML-DSA652407901,920ML-DSA872107901,570RSA signing performance (tps) for NIST recommended key lengths2048 bit6703,94913,6144096 bit1358142,2008192 bit19115309ECC prime curve signing performance (tps) for NIST recommended key lengths256 bit2,0857,55321,826512 bit1,0105,97716,164Key generation (key/sec)RSA 2048 bit72023ECDSA P-256 bit1,0403,5803,494ECDSA P-521 bit5182,4802,724Key agreement performance (transaction/sec)ECDH P-256 bit2,0857,55021,436 |
Download product documentation and resources
